DSGW-090 MTK7628 Gateway Intro

DSGW-090 MTK7628 Gateway

DSGW-090 MTK7628 Gateway is a ceiling-mountable gateway hub designed for applications in smart homes, offices, smart apartments, IoT-based elderly care solutions, and home security control. It is powered by the MT7628AN processor and offers support for Power over Ethernet (PoE) as well as dual SIM cards. The gateway also features compatibility with multiple wireless protocols, including Wi-Fi, Zigbee 3.0, BLE, and Z-Wave. Users can establish network connections via Wi-Fi, Ethernet, and Cellular interfaces, and it can connect to smart sensors using Zigbee 3.0, BLE, and Z-Wave protocols.

Mechanical Design and Dimension​

Mechanical Design of DSGW-090 MTK7628 GatewayExternal Interfaces of DSGW-090 MTK7628 Gateway

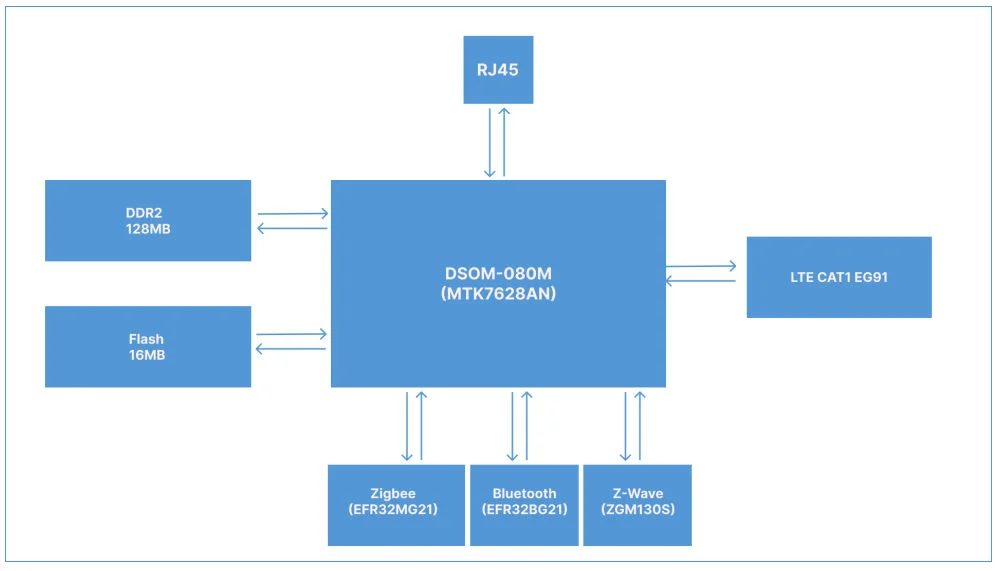

Hardware Block Diagram​

Hardware Block Diagram of DSGW-090 MTK7628 Gateway board

Packaging List​

Packaging List of DSGW-090 MTK7628 Gateway board

Resources of DSGW-090 MTK7628 Gateway​

Basic Documents​

SpecificationUser ManualQuick Start GuideFAQs

Other Documents That May Help You​

Core DevelopmentResources
SDKDownload
MTK7628 Firmware PackagingDownload
Zigbee Module FirmwareDownload
BLE Module FirmwareDownload
Z-Wave Module FirmwareDownload
Avaliable Third-party SoftwareResources
Node-REDDownload
Blufi BLE BeaconDownload
BLE2MQTTDownload
Zigbee2MQTTDownload
Z-Wave2MQTTDownload
